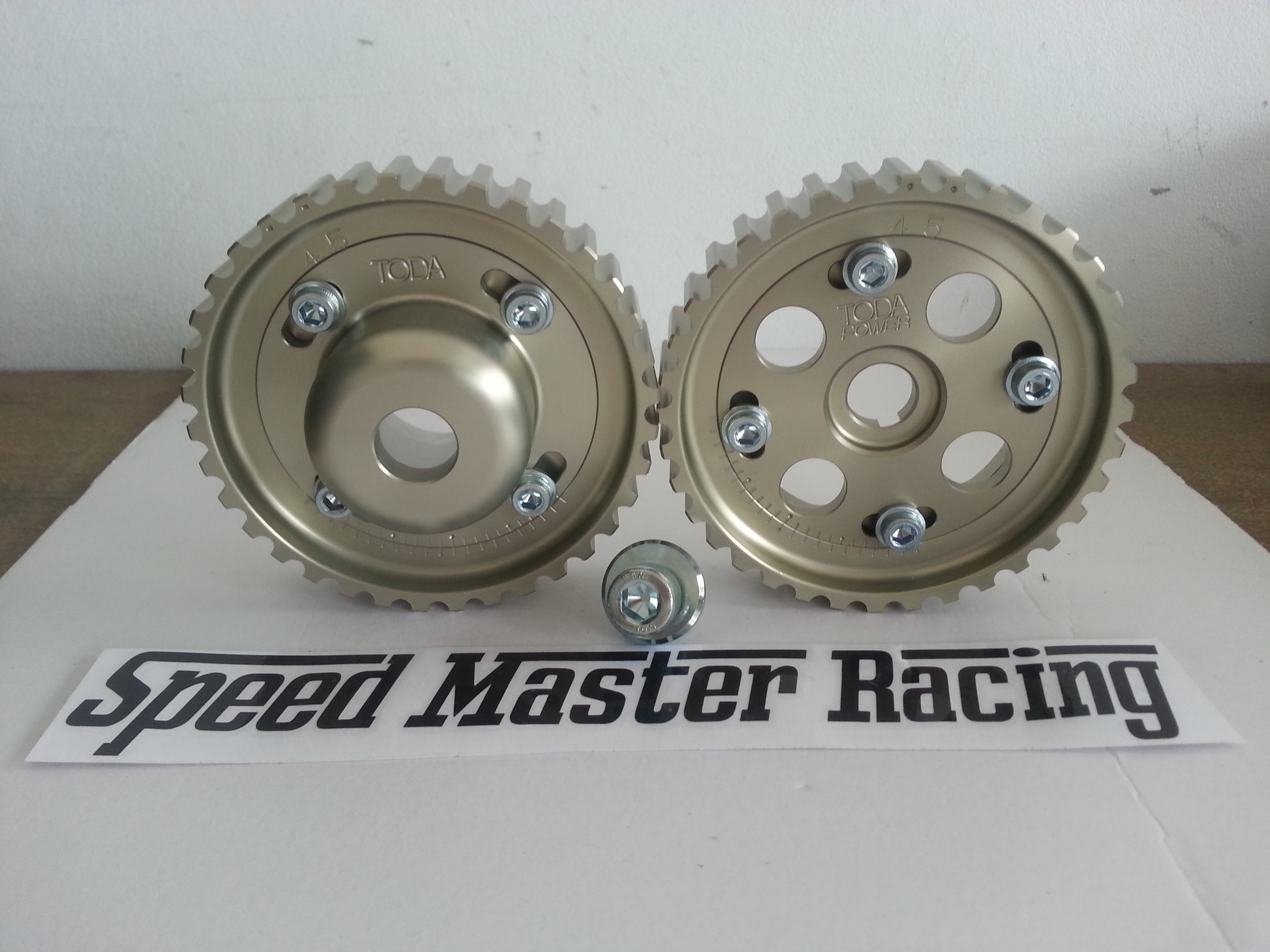

Toda Racing Cam Pulley

US$ 380.00



Brand: Toda Racing

Product: Adjustable Cam Pulley Set Toyota Levin Trueno AE101 20V

Part Num: 14210-101-001 (intake)

Part Num: 14211-4AG-001 (Exhaust)


FEATURES:

Duralumin A-7075 + Hard anodize equals Light Weight High Rigidity High Accuracy


- High-strength and light weight anodized Duralumin A-7075 is extensively used in both the pulley and the inner plate. Creating a cam pulley that is highly accurate, super light and highly rigid.

- Accurate valve timing for all situations.

- Can be used with the original camshaft.

- The adjustments can be carried to 1 deg of the crank angle. (0.5 deg of the cam angle)


- High Accuracy:

Differing from the standard sintered one piece pulleys. The Toda adjusting cam pulley is made up of two sections (pulley and inner plate) allowing independent movement between the two. This freedom combined with the vernier type graduations (1 deg of crank angle, 0.5 of cam angle) enables the timing to be adjusted accurately giving maximum results.


- Super Lightness:

Duralumin A-7075 is used extensively for both its lightness and its high rigidity in both the plate and the cam pulley. With both improved design and material changes an average weight saving of 30% is found. Along with weight reductions comes a reduction in inertia so increasing the engines responsiveness.


- High Rigidity:

By using Duralumin A-7075 and good design, Toda pulleys have high rigidity. High rigidity leads to improved timing accuracy for either standard or high performance camshafts. Anodized to prevent wear especially form contact with the belt.


Set Include:

- 1x Intake Pulley

- 1x Exhaust Pulley


SPECIFICATIONS:

Material: Duralumin A-7075


PRODUCT NOTES:

- With a vernier degree scale.

- In all sections duralumin A-7075 is used.

- VVT system cannot be used.


COMPATIBILITY NOTES:

- Designed only for Levin/Trueno AE101 with 20 Valves 4A-G Engines.
